This is Exciting!

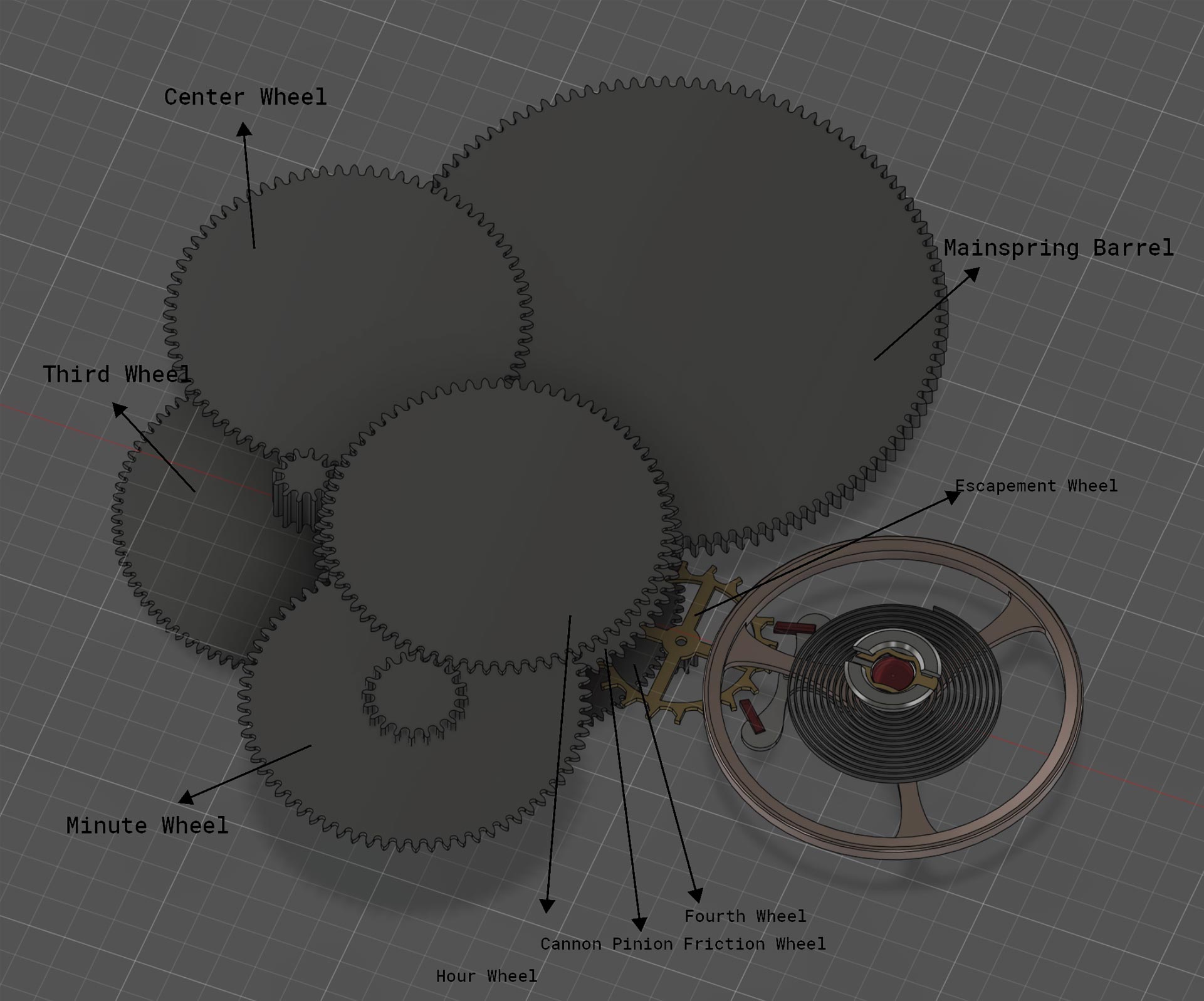

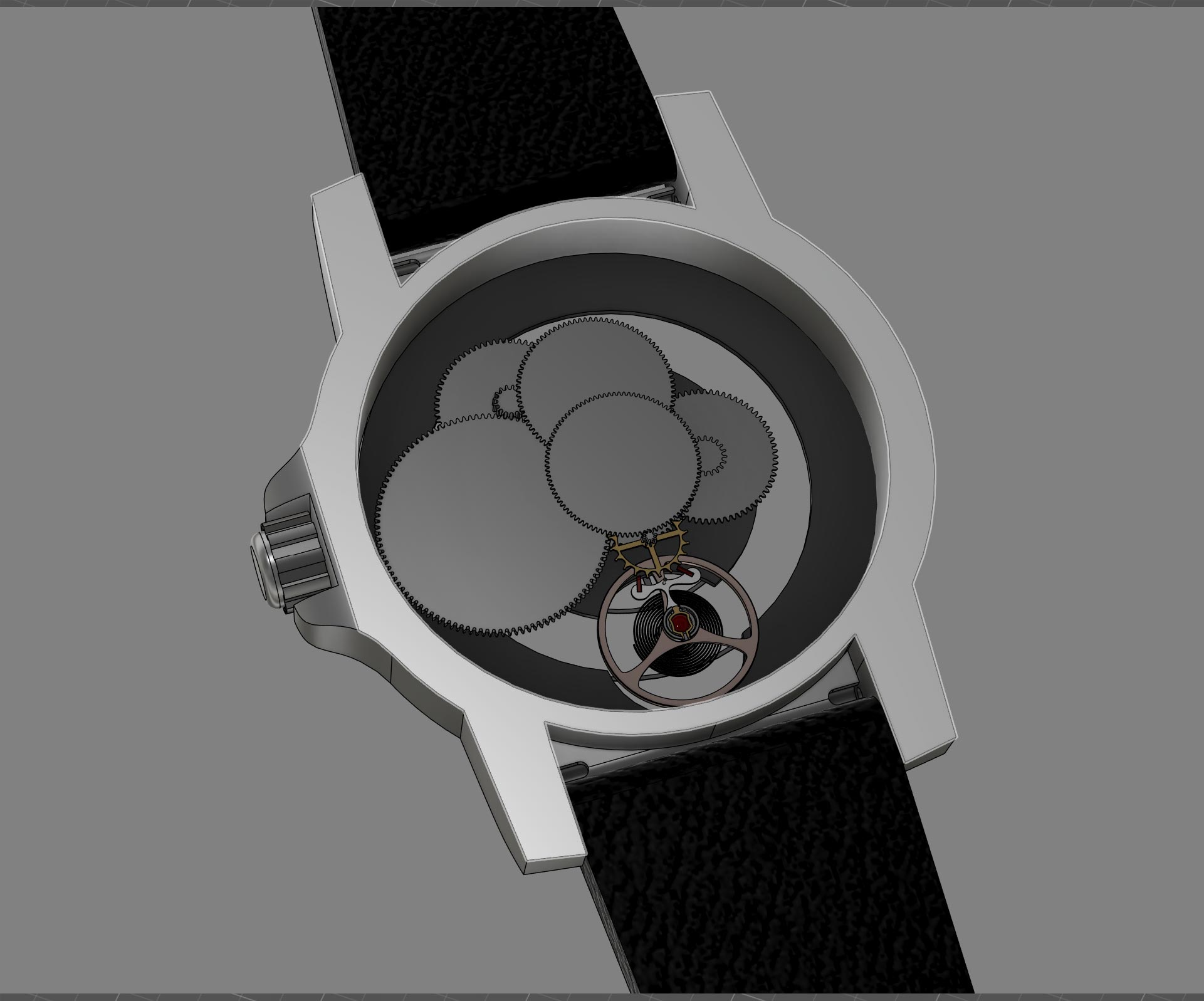

This layout is finally set up to show hours, minutes, and seconds correctly. Can you believe it's taken about a month to get here? Just one more detail to nail down (see last pic)!
Current Status:
Wheels aren't designed yet, so they're still looking solid and rough.
Bridges and jewels aren't in place yet either.

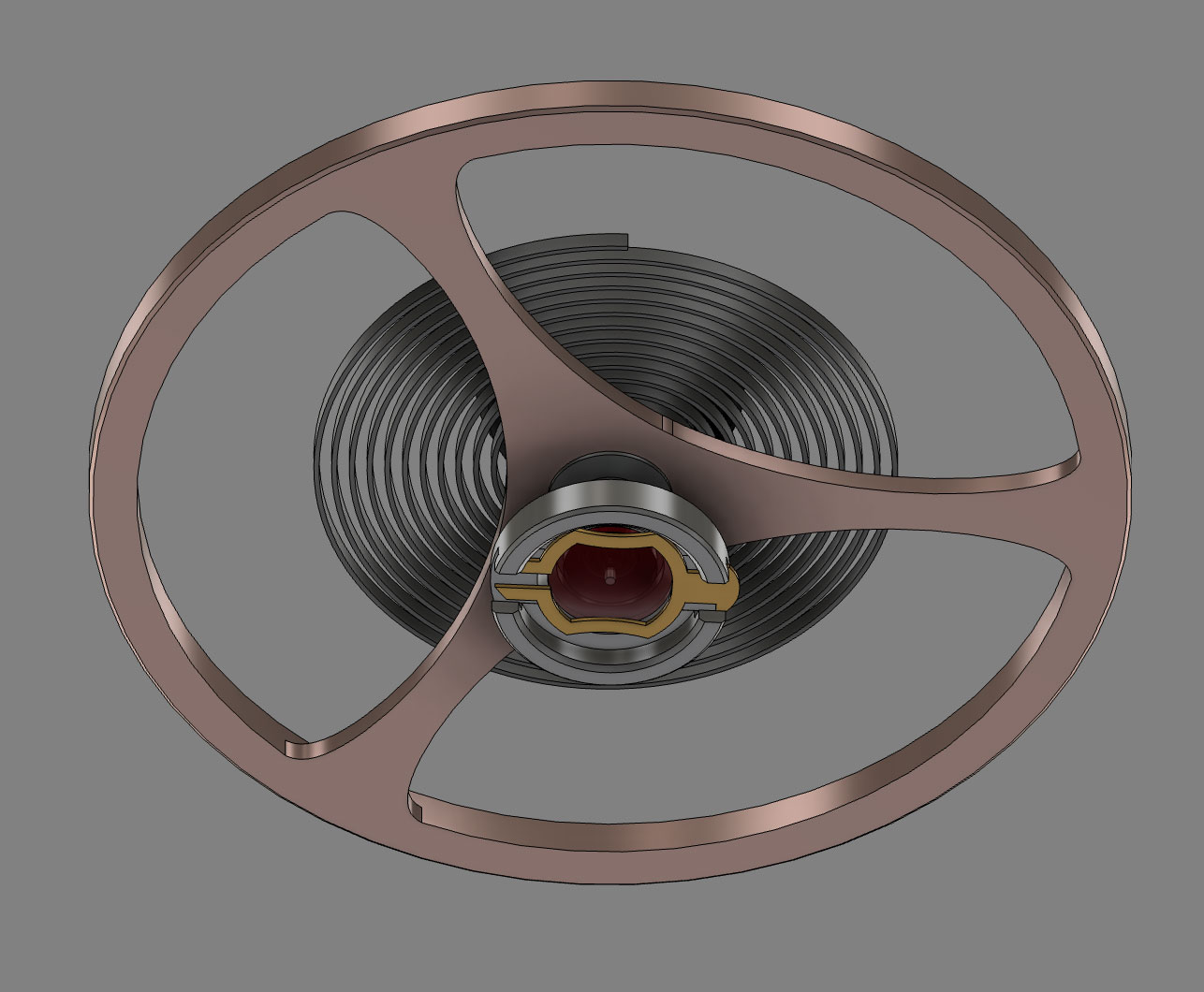

Unexpected plot twist: I'm officially in love with the balance wheel ❤️
Here's the "But"…
The center wheel pinion is where the magic happens for the coaxial hands. It drives a secondary wheel, and the cannon pinion is friction-fitted right on top of that secondary wheel.
So, what's the issue?

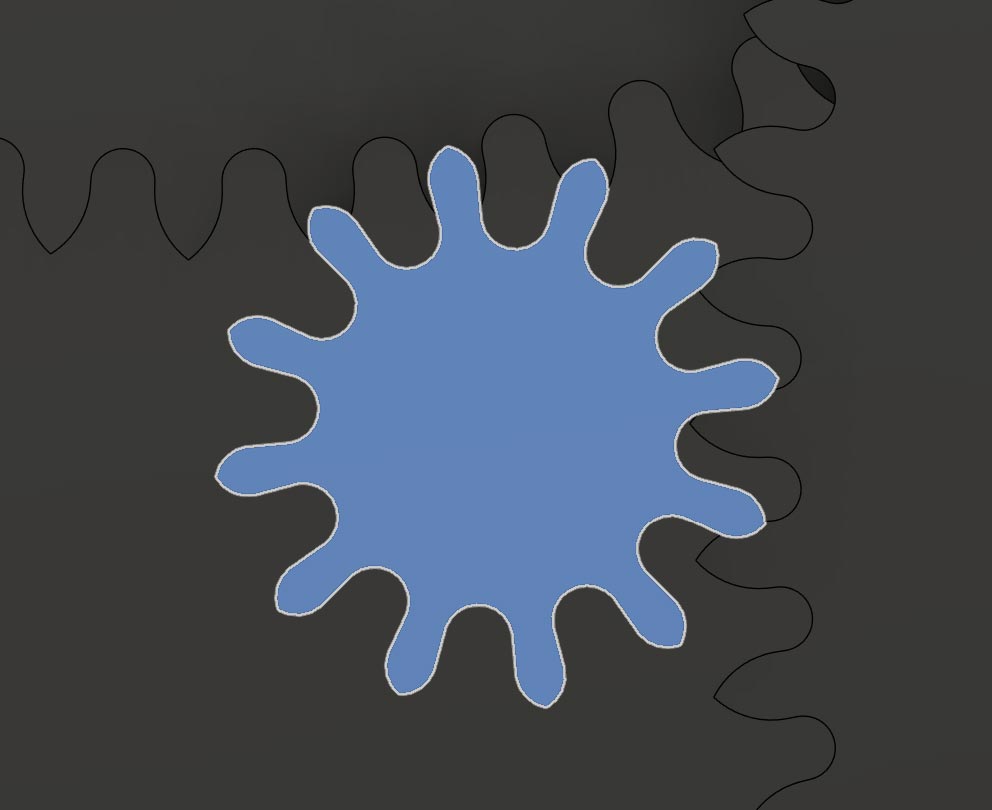

I'm struggling to get the dedendums of the center wheel pinion to line up properly with the cannon-wheel, especially since its axis is actually the fourth wheel. Gotta figure this one out to keep everything aligned!
TLDRPutting all the components together revealed a crucial design flaw: the current sizes of the wheels don't allow the cannon pinion to fit properly. 🛠️ This means a redesign is necessary, specifically adjusting the teeth counts, to ensure everything functions smoothly. It's a good reminder that sometimes you need the big picture to spot the small but important details.
Show moreShow less

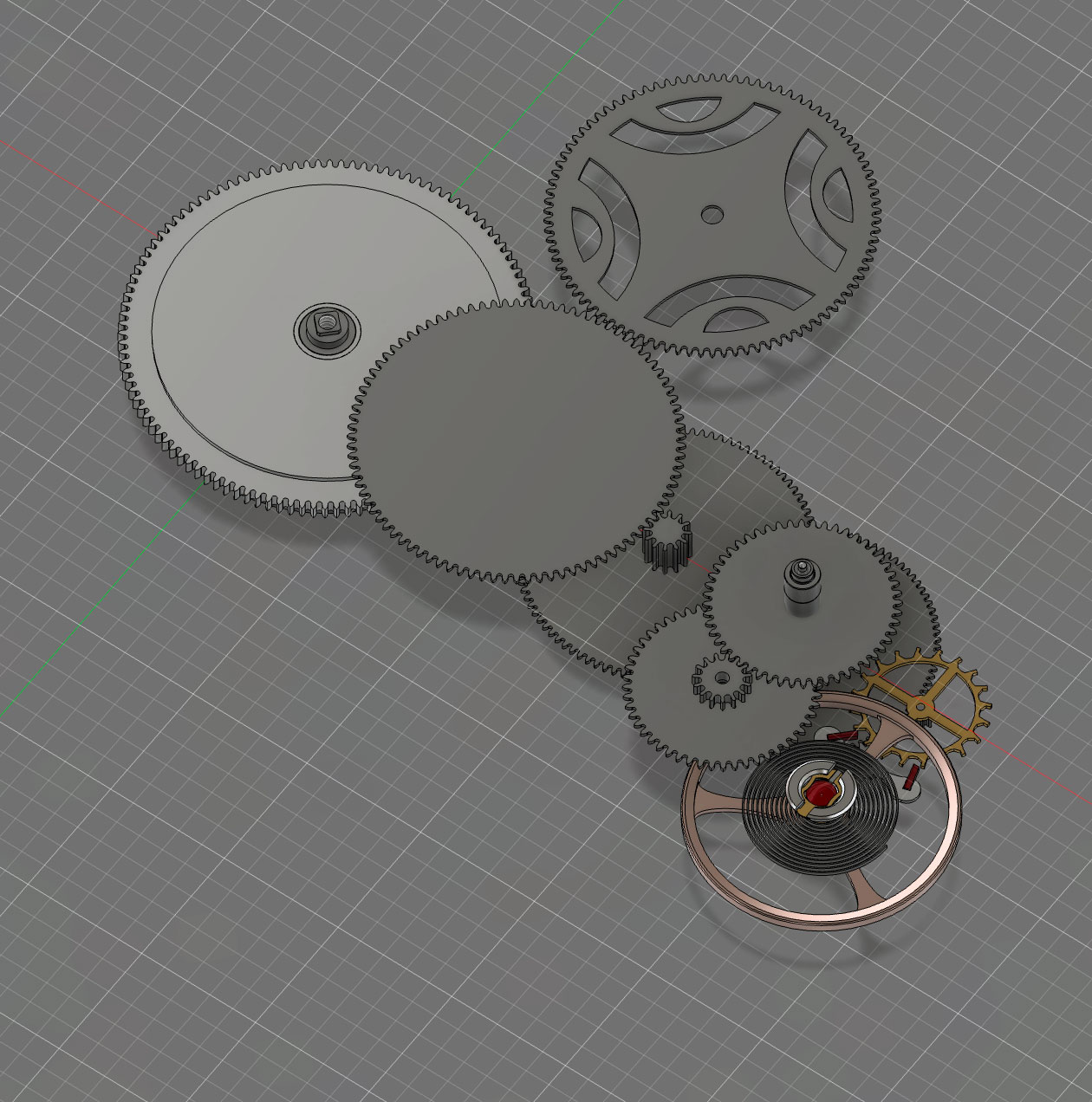

Seeing everything together uncover errors
These wheels make all the ratios that will display hours, minutes, seconds in the same axis
Im really glad I layed them over together
why?
See that wheel with the curvy cutouts? well the cannon pinion fits in it, and with the current sizes I wont be able to fit the two wheels, need to rework the teeth counts!
TLDRI'm refining my watch movement design by following NIHS standards with some help from ChatGPT and Alex at Watch Repair Tutorials. Key focus: precise mainspring dimensions and a perfect barrel arbor fit to minimize friction, plus a smart choice of a bride rapportée for better automatic winding. Stay tuned for more as the prototype phase gears up! ⏱️
Show moreShow less
Following NIHS - Refactoring.
Been closely following NIHS standards,
with the help of chatgpt, and Alex from watchrepairtutorials.com calculated precise mainspring dimensions:
Thickness: 0.13 mm
Length: 551 mm
Width: 1.33 mm
Additionally, I ensured the correct fit of the barrel arbor, with a total height of 1.58 mm to fit smoothly inside the barrel, maintaining a clearance of 0.1 mm on both the top and bottom to prevent friction. I've also decided on the use of a bride rapportée (inserted bridle) for its superior control in automatic winding.
The technical details I've explored, including the use of Nivaflex mainsprings and calculations based on NIHS 11-02 standards, bring us closer to a well-engineered movement.
Stay tuned for more updates as I push forward with the prototype phase!

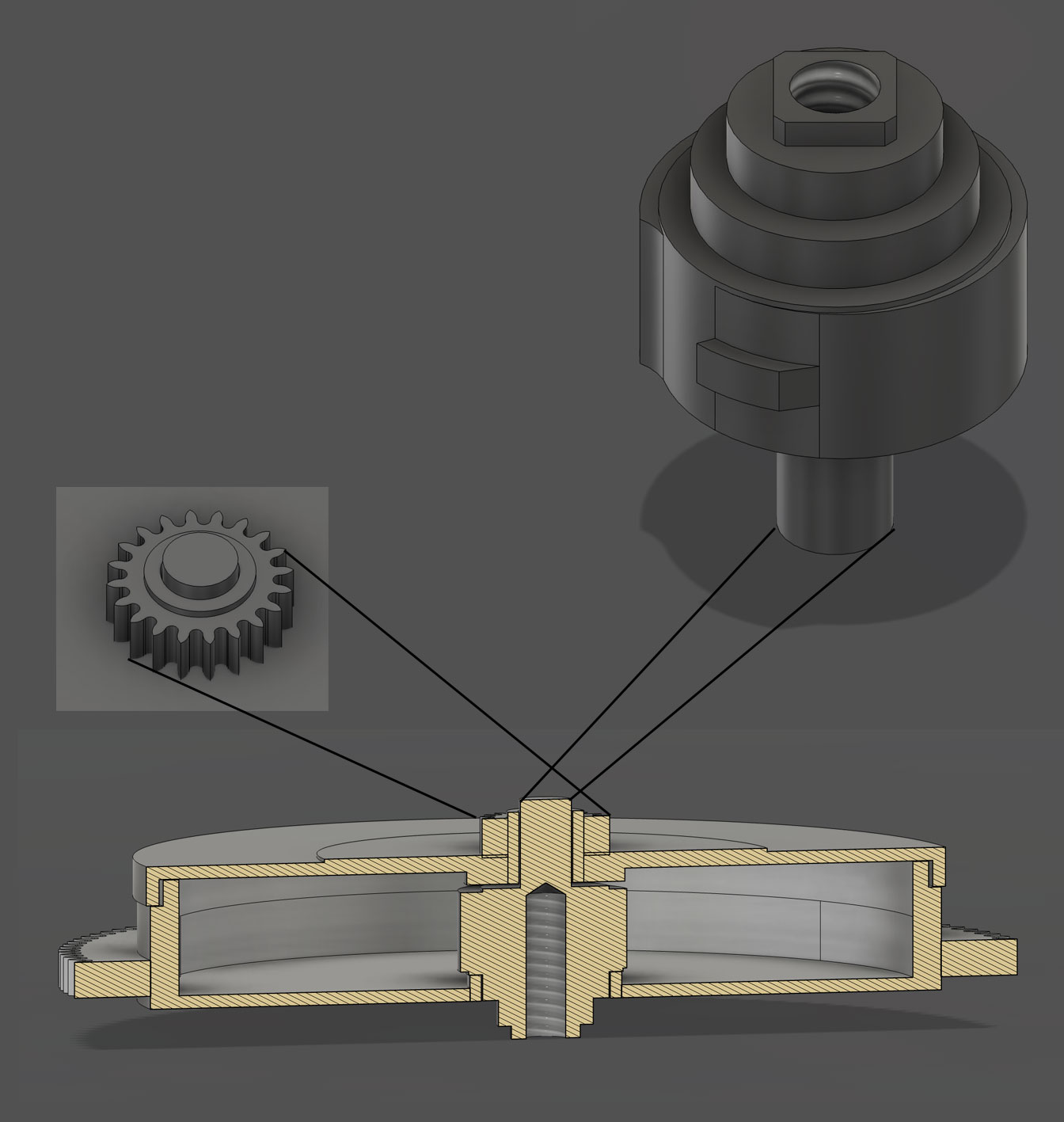

Barrel arbor, Mainspring barrel
Escapement (yep missing the safety pin) -- target: 28800 vph
Im thinking of going with KIF, but need to explore more

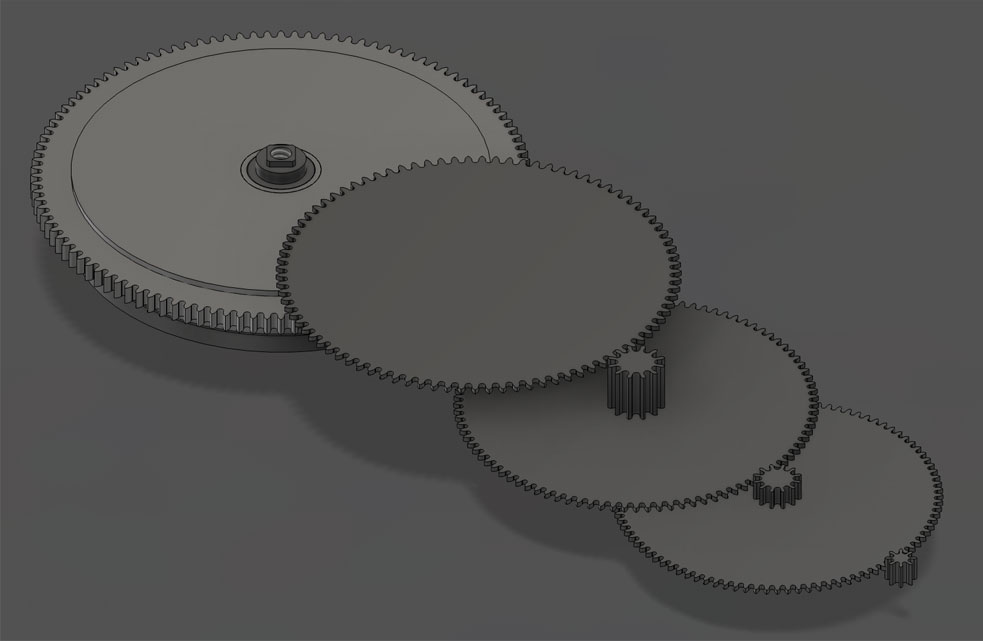

Train of wheels -- with proper reduction for the fourth wheel and minute wheel
TLDRThe blog post is about fitting hands onto watch cylinders made to a specific standard (NIHSg 24-10), with the wheel mechanism still being a work in progress. It's a peek into the technical details of watchmaking and the ongoing process of refining the mechanism. If you're into the nitty-gritty of watch design, this one's for you! ⏱️
Show moreShow less

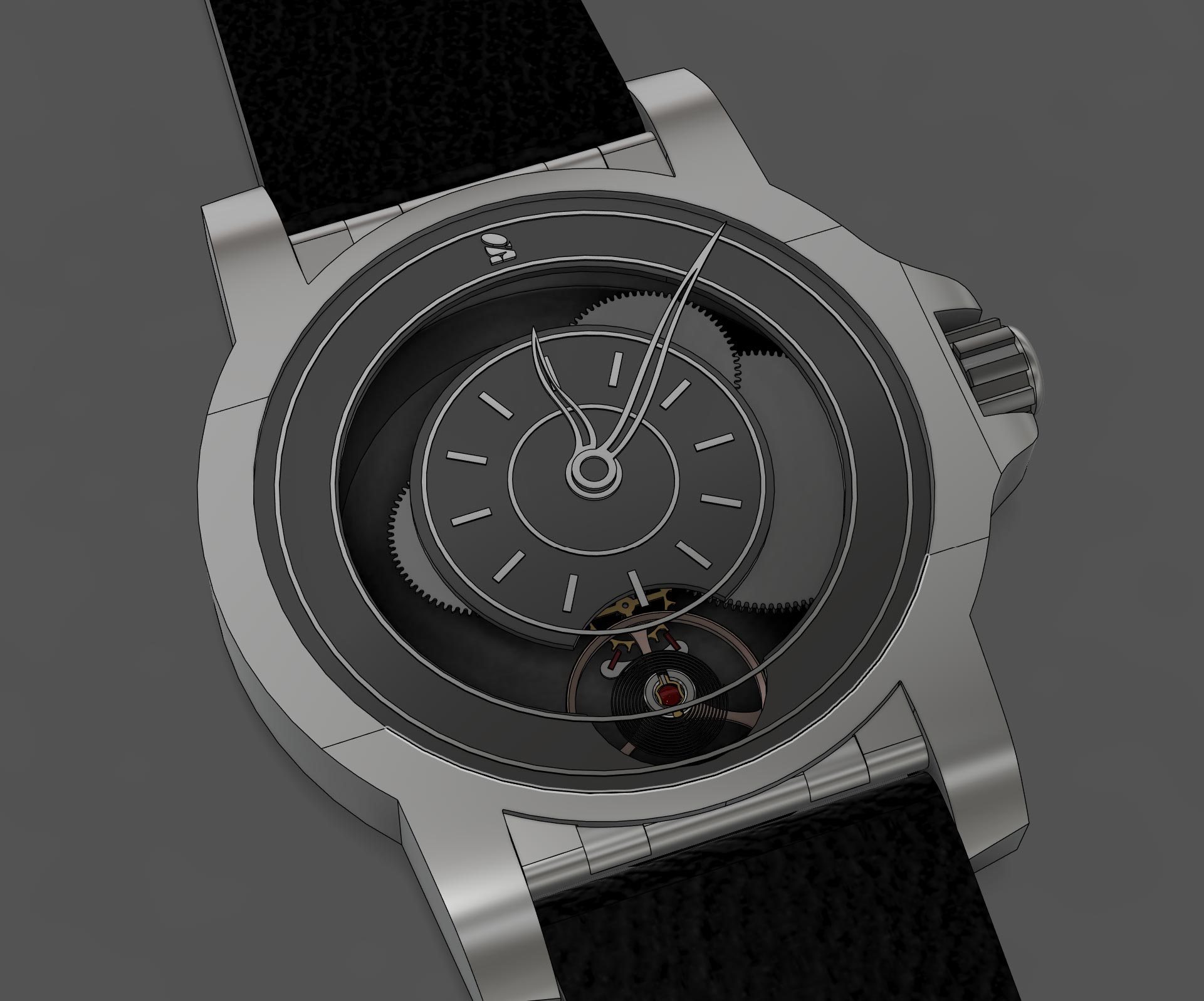

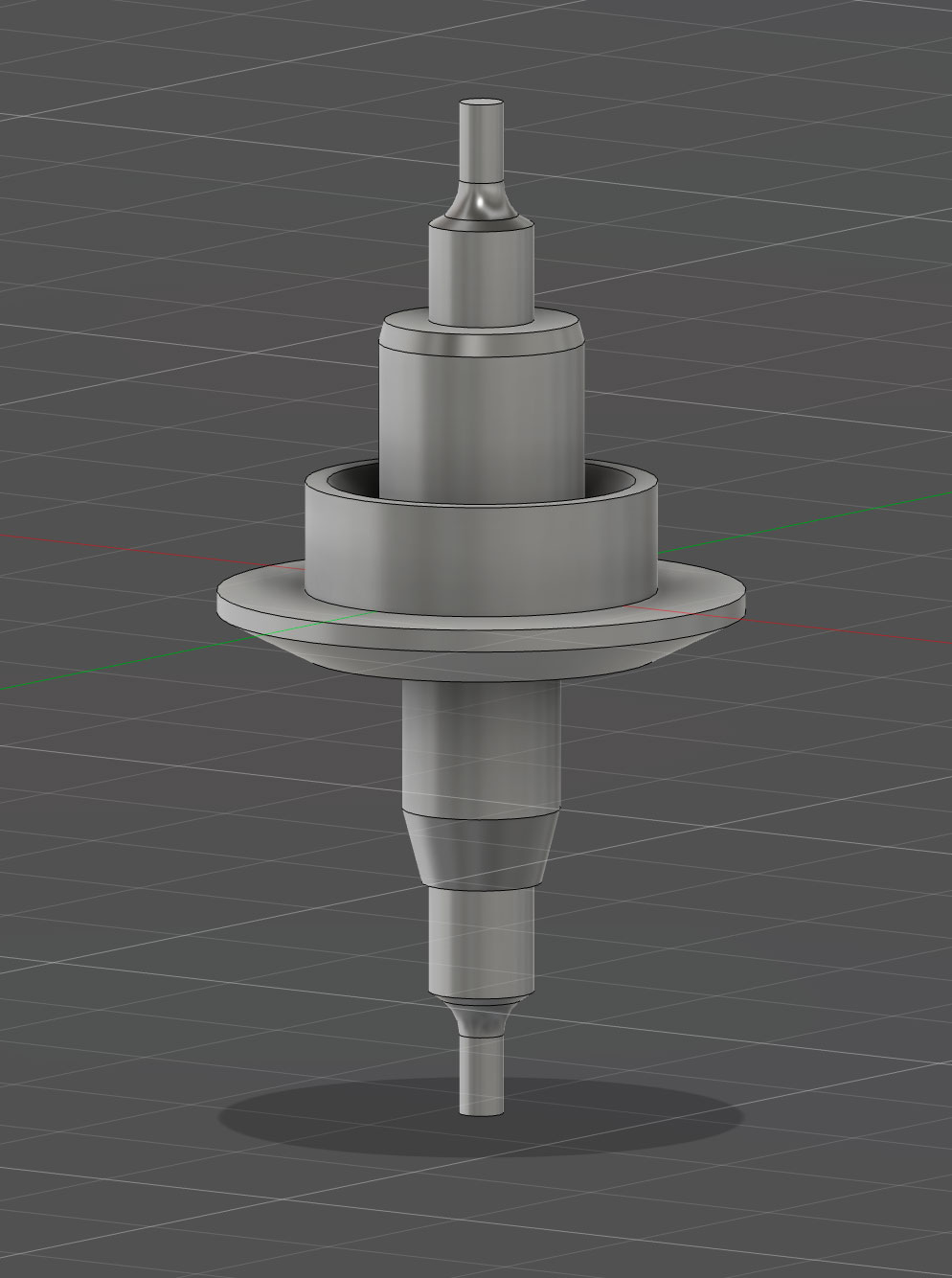

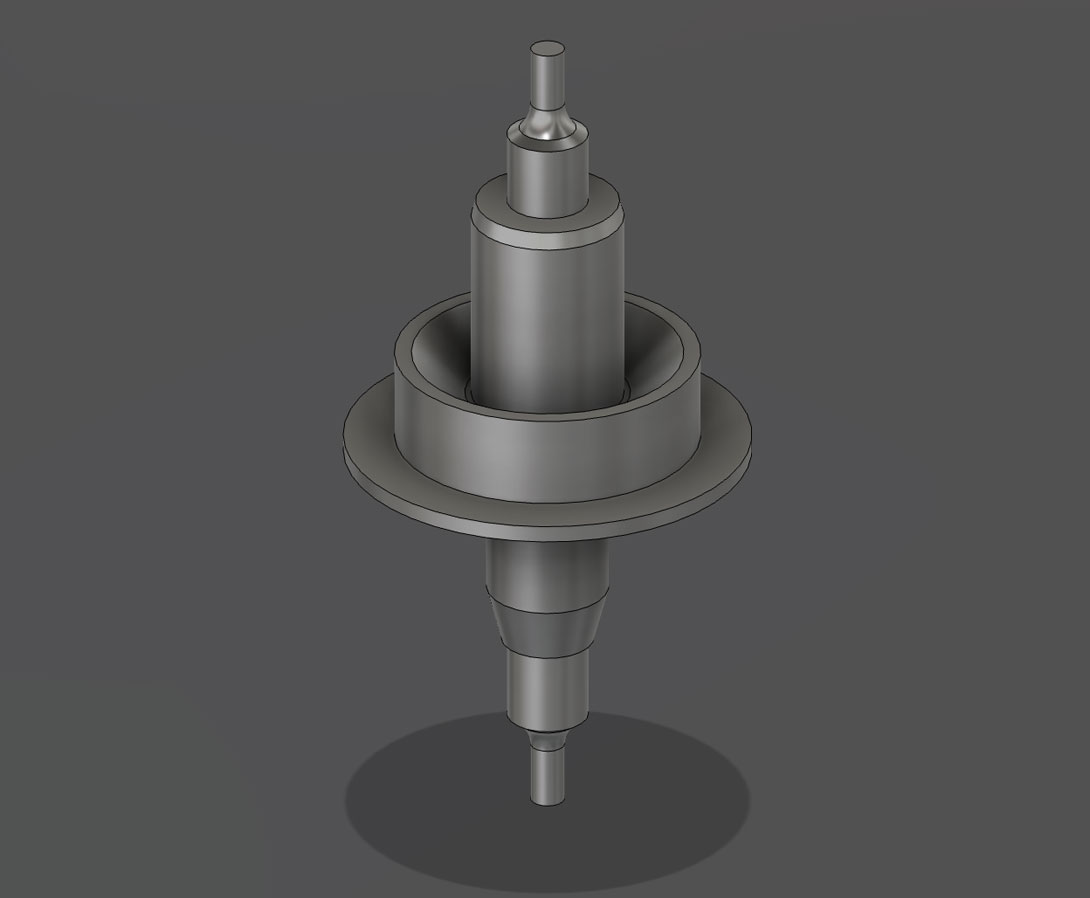

Hands fitting.
The cyclinders where made to NIHSg 24-10
The wheel mechanism under the cylinders is still WIP
TLDRThis blog post offers a quick look at the top and bottom incabloc components, modeled based on details from the incabloc website. The author is hoping to find a source to procure these pieces, showcasing sketches labeled sus 100.12.257 and sous 103.20. If you're into watchmaking or horology, it's a neat peek into the specifics of these watch elements. ⏱️
Show moreShow less
Quick exploration of top and bottom incabloc.
I modeled these based on the incabloc website, hopefully I can source them from somewhere:
TLDRSwitching from 36000 vph to 28800 vph in watchmaking simplifies the process by reducing the need for additional wheels, and aligning with NIHS standards eases this transition. The exploration involves fine-tuning various components like the balance wheel and hairspring, with ongoing adjustments to optimize performance. The author is considering component choices like Incabloc and fendue virole, navigating decisions between laser welding and pinning techniques. 🕰️
Show moreShow less

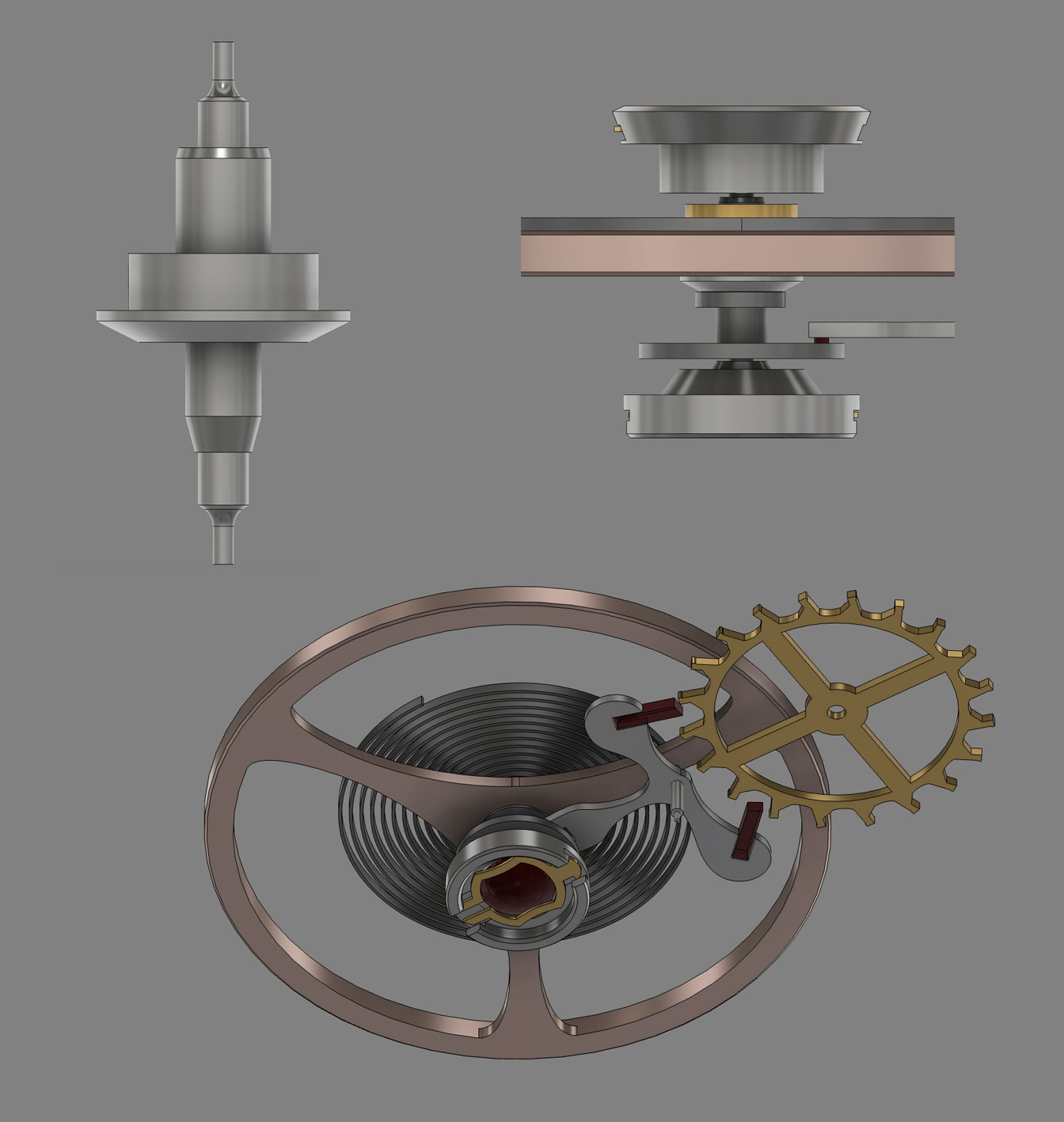

Exploring 28800 vph
It seems 36000vph, forces me to add a third and fourth intermediary wheels to the train, Im not sure I like that.
I decided to explore 28800 vph, following NIHS rules actually simplifies the process (NIHSG_34-04, NIHSG_34-25, NIHSG_35-10, NIHSG_35-15, NIHSG_35-20)
Please note that due to my exploration, these values are constantly changing

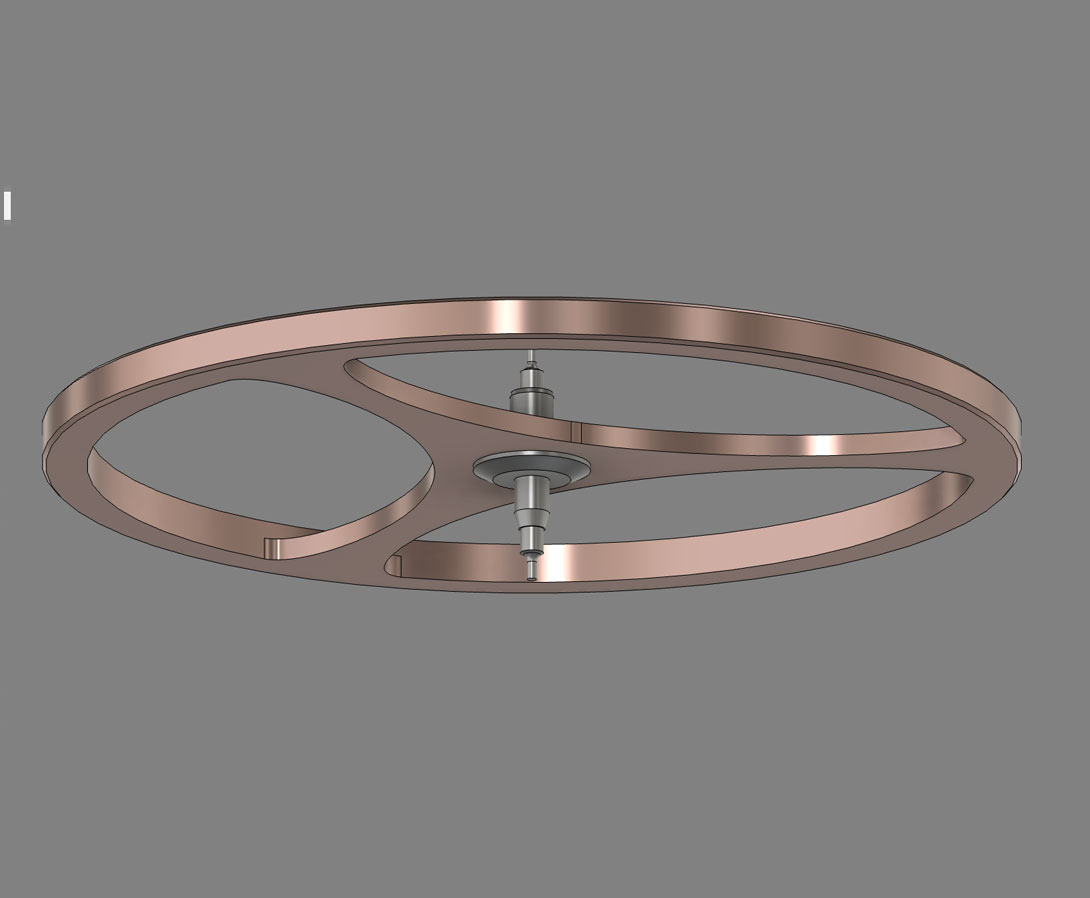

Balance wheel Inertia
12.5mm
Balance wheel Diameter
10mm
Hairspring D
6mm
Hairspring d
1.3mm
Hairspring h
0.18mm
Hairspring P
0.17mm
Hairspring K
2.65 10^-2 N·mm³/rad

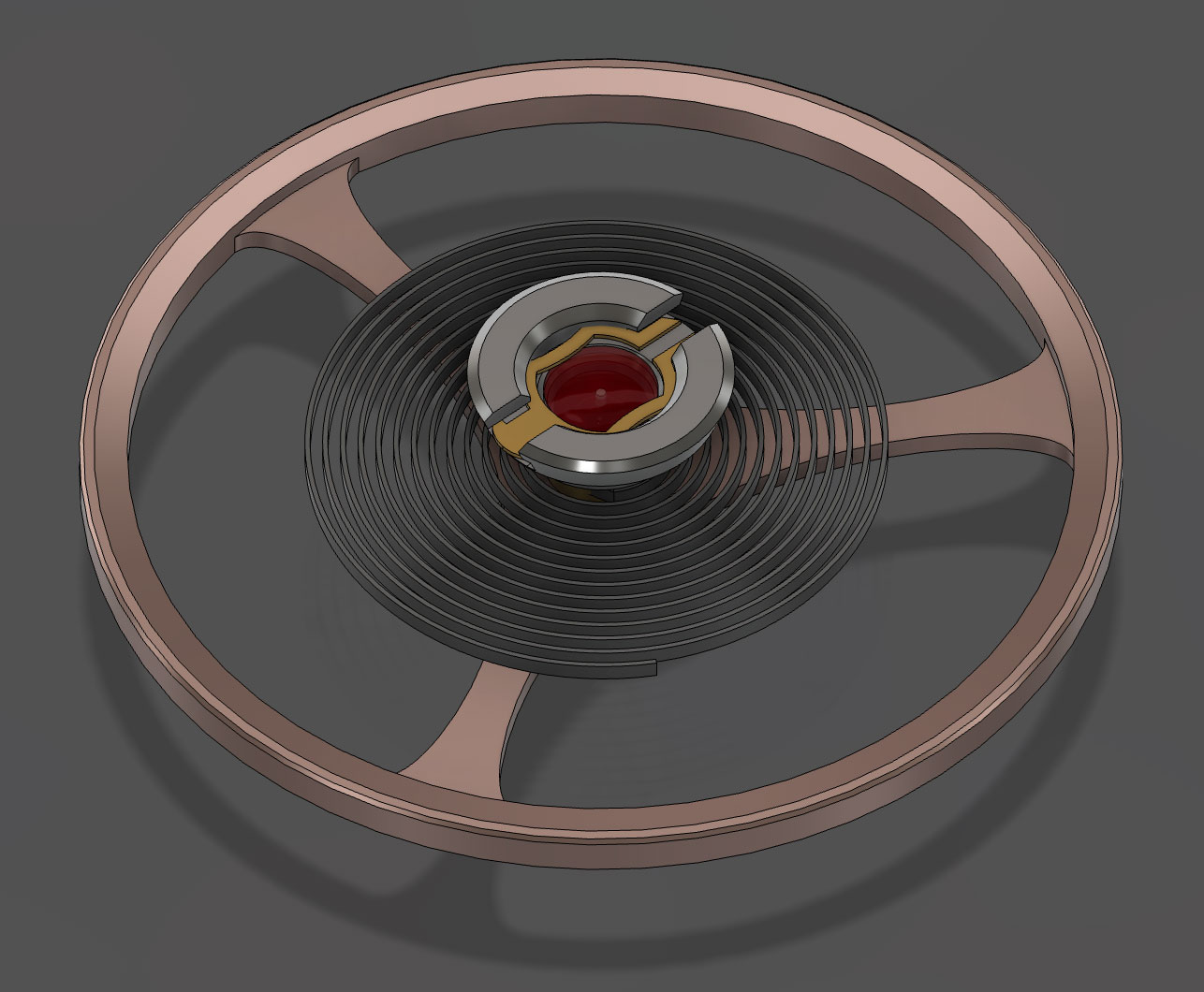

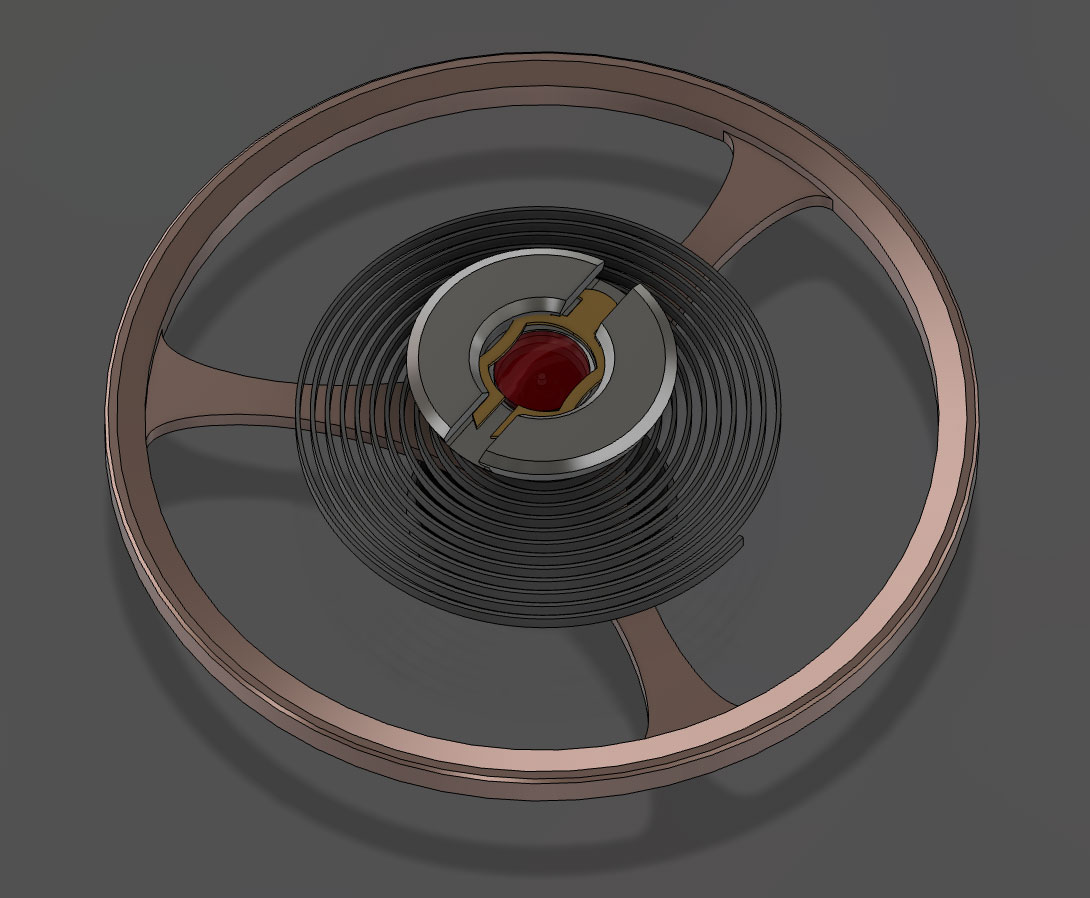

Overall view with a candidate of Incabloc 100.11.310/0* , though maybe it's a bit thick 🤔

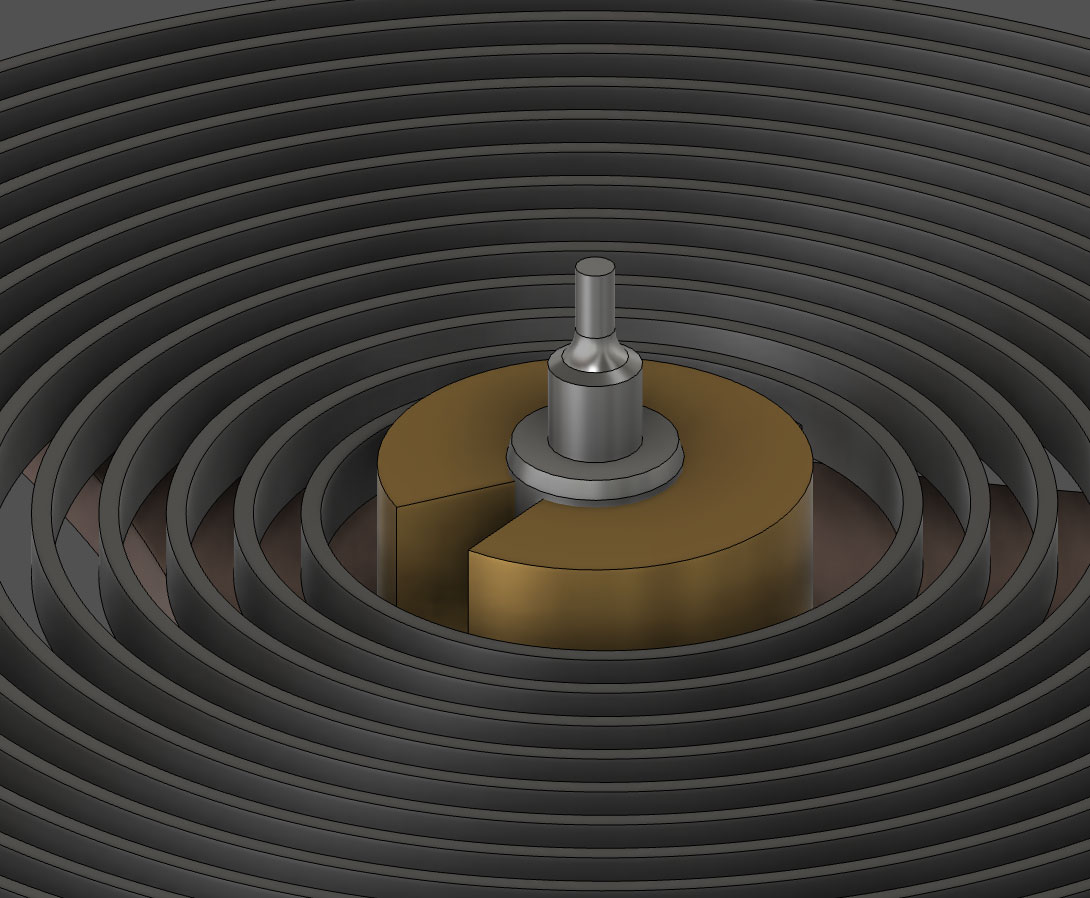

Decided with a fendue virole (NIHSG_35-20), still need to figure out if going with laser-weld, or Pinning with a stick
TLDRHad a breakthrough day fine-tuning my watch movement with a little help from ChatGPT, nailing down the ideal specs for the balance wheel and hairspring. Weighing material options like Glucydur and brass was a challenge, but I made a smart choice, and now I'm on the hunt for the perfect hairspring. 🚀 Things are really coming together!
Show moreShow less
Fine-Tuning My Watch Movement: A Day of Progress
Today was a significant step forward in designing my 36,000 vph watch movement. With the invaluable help of ChatGPT, I tackled key areas like refining the balance wheel and hairspring, choosing the best materials, and fine-tuning my calculations.
Balancing the Wheel and Hairspring
For my movement to function at 5 Hz, I needed the right balance wheel (8.25 mm, 6.3 mg·cm²) paired with a precise hairspring. After some detailed calculations, I determined the ideal CGS number (K) to be 22.43 dyne·cm²/rad (or 224.3 N·mm³/rad in SI). ChatGPT helped break down the complex formulas and get everything just right.
Material Selection
Choosing between Glucydur, beryllium copper, and brass was tricky. Glucydur offers superior stability, while brass is easier to machine. With ChatGPT's input, I weighed the pros and cons and made an informed decision for my balance wheel.
Perfecting the Numbers
Precision was key, so I worked through the NIHS standards to ensure my balance wheel tolerances were spot on, with ChatGPT guiding me through the calculations for tolerance classes like js7. This gave me confidence in my design's accuracy.
Sourcing
Im trying to source a hairspring now that I know the numbers, hopefully I find someone willing to sell them to me.
TLDR:
Today's progress, supported by ChatGPT, brought me closer to realizing my high-frequency watch movement. From calculating the perfect hairspring to choosing materials, everything is falling into place!
(yes, chatgpt summarized all our interaction today, hehe)
TLDRIf you're into watchmaking, using 301 steel for mainsprings and Nivarox for hairsprings is the go-to choice. Creating a mainspring from scratch involves stamping, annealing, hardening, tempering, and coiling the metal. Even if you're not sure how to do it yet, it sounds like a fun challenge to tackle! 😃
Show moreShow less
Chatting with ChatGpt regarding some materials
TLDR; 301 steel will work for mainsprings and Nivarox for the hairspring
It'd be cool to make it from scratch, e.g the mainspring, I'll need to:
Stamp the Piece of Metal
Anneal the Metal
Harden the Metal
Temper the Metal
Coil the Mainspring
Do I know how to do this, Nope, but sounds like a challenge 😃
TLDRThe blog post features a video visualization of an escapement mechanism, a topic often explored but still fascinating for its intricate functionality. If you're curious about how these tiny components keep time ticking, this visual deep dive might be worth your few spare minutes. Perfect for a quick, enlightening break in your day. ⏱️
Show moreShow less
Quick viz of escapement
I know this has been done thousands of times by many people, still is quite cool to understand
TLDRThe blog post dives into watchmaking tweaks, focusing on using specific Bergeon jewels to refine a watch's fork and balance roller for optimal performance. Inspired by George Daniels' "The Practical Escapement," you're exploring new angles to achieve 36,000 vibrations per hour. If you're into precision timekeeping, this experiment might just pique your interest! 🕰️
Show moreShow less

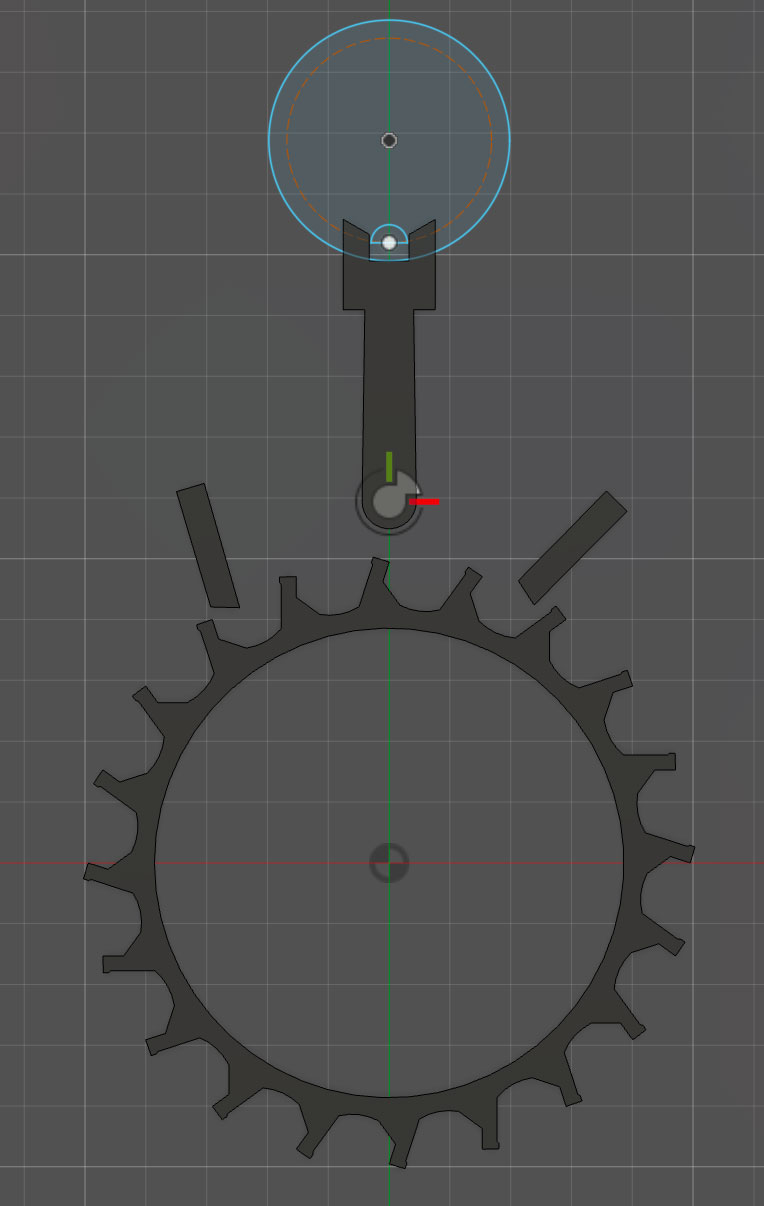

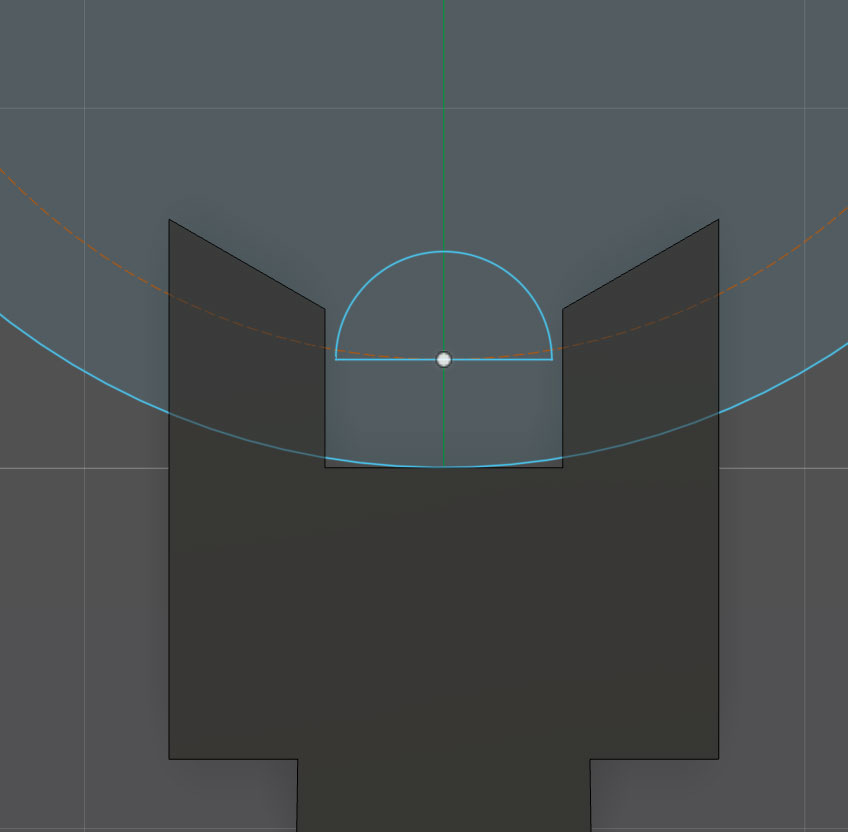

Fork and Balance Roller Jewel.
The animation on the previous post helped a lot! I added to the script building the fork based on the bergeon jewels I'm gonna test, it will be easy to change later
Also after receiving the book "The practical Escapement" by George Daniels, I discovered an update to the angles on generating the wheel and pallet to be able to reach 36000 vph. gonna try that
